USAGE

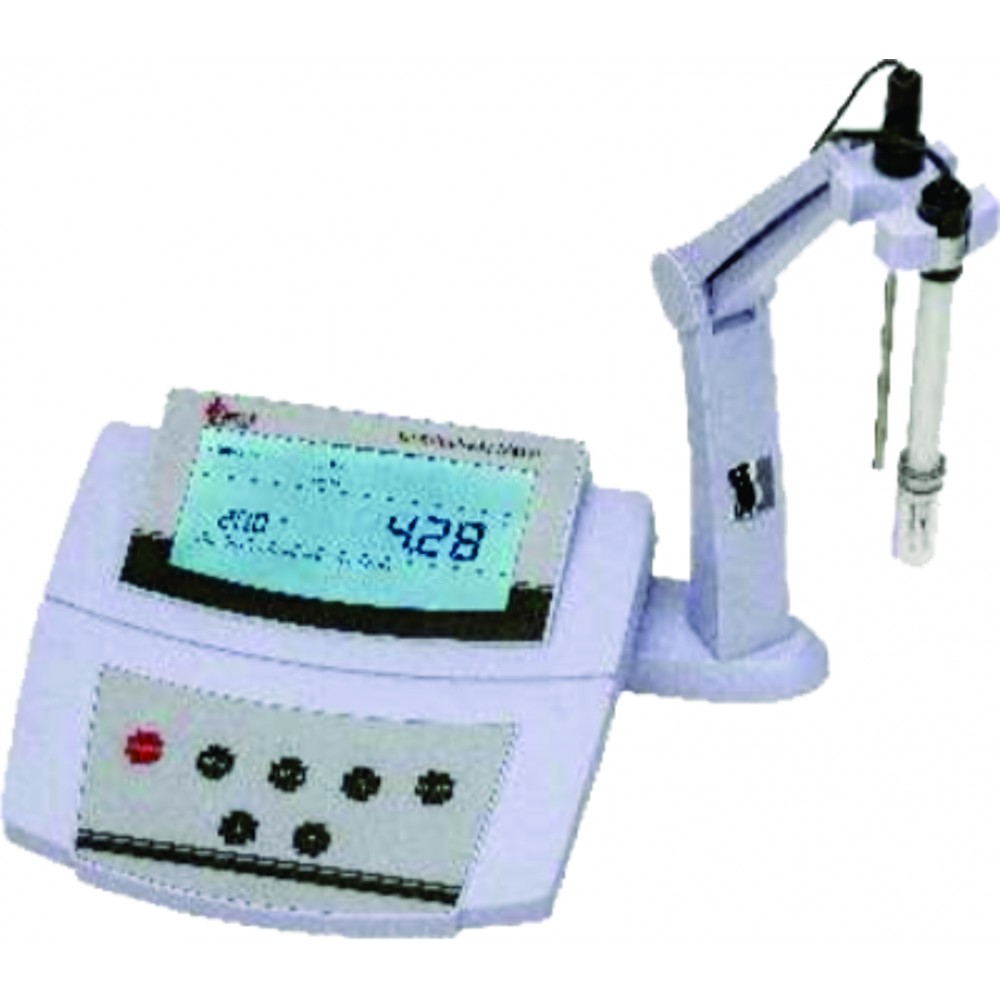

Auto Ranging, microprocessor Conductivity TDS / meter for measurement of conductivity and Total Dissolved Solids of liquid.The meter is widely used in environmental and ecological studies for monitoring the purity and concentration of liquids.

SALIENT FEATURES

• Multipoint push - button calibration allows user to use customized calibration solutions
• [Up to 3 points, Default 84uS, 1413uS, 12.88mS and 111.8mS]
• Auto - Ranging for conductivity and TDS measurements.
• Selectable TDS conversion factors and temperature units ( C or F)
• Adjustable TDS factors, cell constants and temperature units.
• Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range.
• Automatic endpoint function freezes the stable measured values for easy reading and recording data.
• Help message as a operational guide to helps you understand how to use meter.
• Setup menu lets user customizes calibration points, temperature units, automatic or manual hold function,
• auto-off feature to meet personal preferences.
• Reset function allows user to returns all settings to the factory default values

SPECIFICATION

Range                                         0~20.00, 200.0, 2000μS/cm, 20.00, 200.0mS/cm        ( 5 auto ranges)

Accuracy                                 ± 1% F.S

Resolution                                 0.01, 0.1, 1

Calibration Points                 up to 3 points

Conductivity Buffer Option 10μS/cm, 84μS/cm,1413μS/cm, 12.88mS/cm, 111.8mS/cm ( any three)

Temperature Compensation 0~100°C, 32~212°F, Manual or Automatic

Temperature Coefficient         0.0~10.0%/°C

Cell Constant                         K=0.1, 1, 10

Normalization Temperature 25°C

Range                                         0~10ppt (Max. 200 ppt, depending on factor setting & conductivity range)

Accuracy                                 ± 1% F.S

TDS Factor                                  0.1 to 1.0 (Default 0.5)

Temperature Range                 0 to 105°C

Accuracy                                 ± 0.5°C

Resolution                                 0.1°C

Hold Function                         Available

Auto Off Function                 Available

Connector                                 6-pin Mini Plug

Display                                         LCD

Power Requirements                 DC9V, using AC adapters, 220VAC/50Hz

Dimensions LxWxH                 210 × 205 × 75mm

Packing Box Size                         300 x 250 x 175 mm

Weight                                         1.5kg

ACCESSORIES

• Conductivity Cell (K=1),
• Calibration Solutions - 84.0 μS/cm, 1413 μS/cm, 12.88 mS/cm.
• Temperature Probe,
• Electrode Stand,
• 9V Power
