USAGE

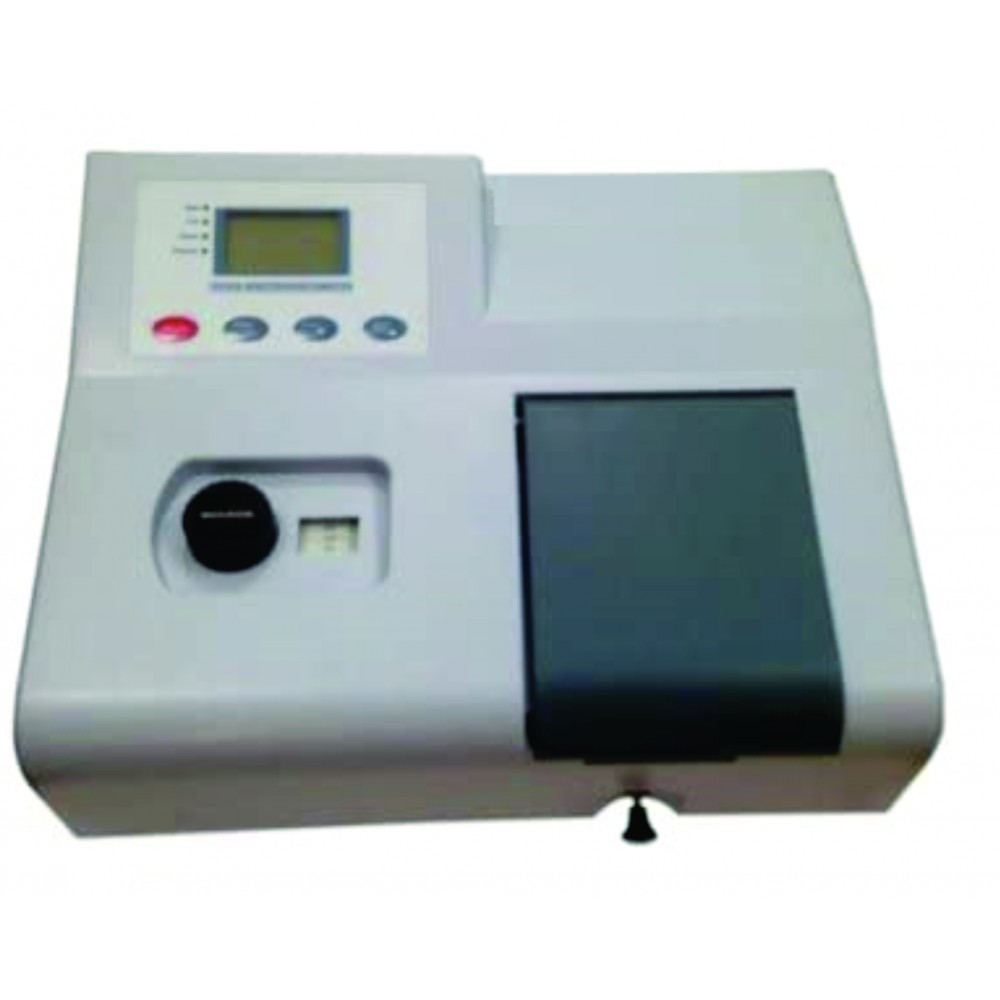

A spectrophotometer is an analytical instrument used to quantitatively measure the transmission or reflection of visible light, UV light or infrared light. Spectrophotometers measure intensity as a function of light source wavelength

Technical Parameters

Display                                                                                                 4 LCD

Display Area                                                                                         0-200 % T -0.3  -3A

Zero Setting                                                                                         Automatic

Optical System                                                                                 CT Grating monochromator

Wavelength Rang (nm)                                                                 195nm - 1020 nm

Photometric Accuracy                                                                         +/- 0.5% T

Photometric Repeatability                                                              0.2% T

Scope of concentration display                                                         0-1.999

Wavelength Accuracy (nm)                                                             ± 2 nm

Wavelength Repeatability(nm)                                                         1 nm

Bandwidth (nm)                                                                                 2nm

Transmittance Accuracy%                                                                 ±1

Absorbance Repeatability%                                                         0.3

Work Pattern                                                                                 T, A, C

Stray light %                                                                                         <= 0.3 %T @220nm

Noise% 0%                                                                                           0.3             100% 1.0

Weight (Kg)                                                                                         12 kgs (Gross Weight )

APPLICATIONS:

• Medical/Pharmaceutical
• Industry Environment Monitoring
• Commodity Inspection
• Food Inspection
• Agricultural Chemistry
• Teaching in Colleges & Universities
• Metallurgy
• Geology
• Machine Manufacturing
• Petrochemical Industry
• Water & Waste water Lab
• Food & Bewerage Lab
